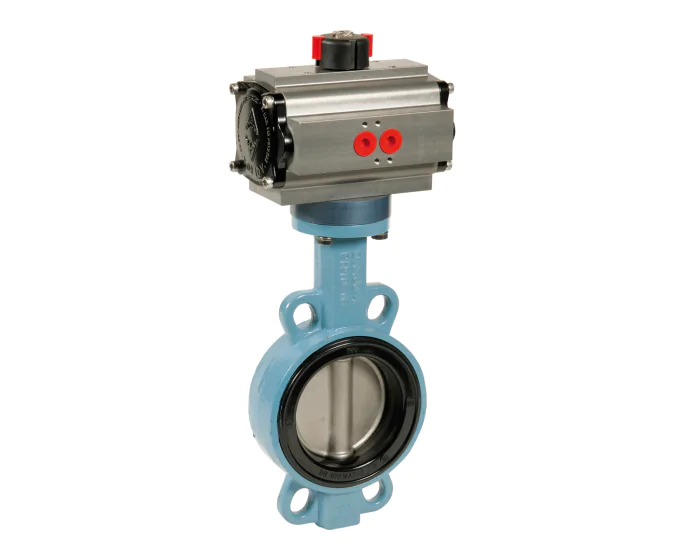

The 1154 series ductile iron butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, features a CF8M disc and FKM seat. It is a wafer type, up to DN300. PN10/16 and ANSI 150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 304 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | 32 - 40 |
| Face to Face (mm) | 33.0 |
| Seat | FKM |
| Body material | Ductile iron |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Surface temperature | TX |
| TS max (°C) | 150 |
| TS min (°C) | -5 |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| ATEX zone | 1.21.2.22 |
| Warranty period | 2 years |
| CE | Risk category I |
| Range | TTV |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron Concentric Double acting 32 - 40 | 260393015100 | S1002910 |
€303.96
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric Spring return 32 - 40 | 260393016101 | S1002911 |
€340.69
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN50 - 2'' Double acting | 260394015100 | S1002912 |
€326.73
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN50 - 2'' Spring return | 260394016101 | S1002913 |
€359.61
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 Double acting | 260395015101 | S1002914 |
€363.86
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 Spring return | 260395016102 | S1002915 |
€416.89
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN80 - 3'' Double acting | 260396015101 | S1002916 |
€381.83
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN80 - 3'' Spring return | 260396016102 | S1002917 |
€434.34
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN100 - 4'' Double acting | 260397015102 | S1002918 |
€472.06
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN100 - 4'' Spring return | 260397016103 | S1002919 |
€524.04
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN125 - 5'' Double acting | 260398015102 | S1002920 |
€609.96
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN125 - 5'' Spring return | 260398016104 | S1002921 |
€709.69
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN150 - 6'' Double acting | 260399015103 | S1002922 |
€784.99
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN150 - 6'' Spring return | 260399016106 | S1002923 |
€1,136.49
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN200 - 8'' Double acting | 260400015104 | S1002924 |
€1,058.69
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN200 - 8'' Spring return | 260400016106 | S1002925 |
€1,176.84
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric Double acting DN250 - 10'' | 260401015105 | S1002926 |
€2,039.91
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric Spring return DN250 - 10'' | 260401016106 | S1002927 |
€2,161.16
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric Double acting DN300 - 12'' | 260402015106 | S1002928 |
€2,434.54
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric Spring return DN300 - 12'' | 260402016107 | S1002929 |
€2,823.49
(excl. btw)
|
add to cart |
